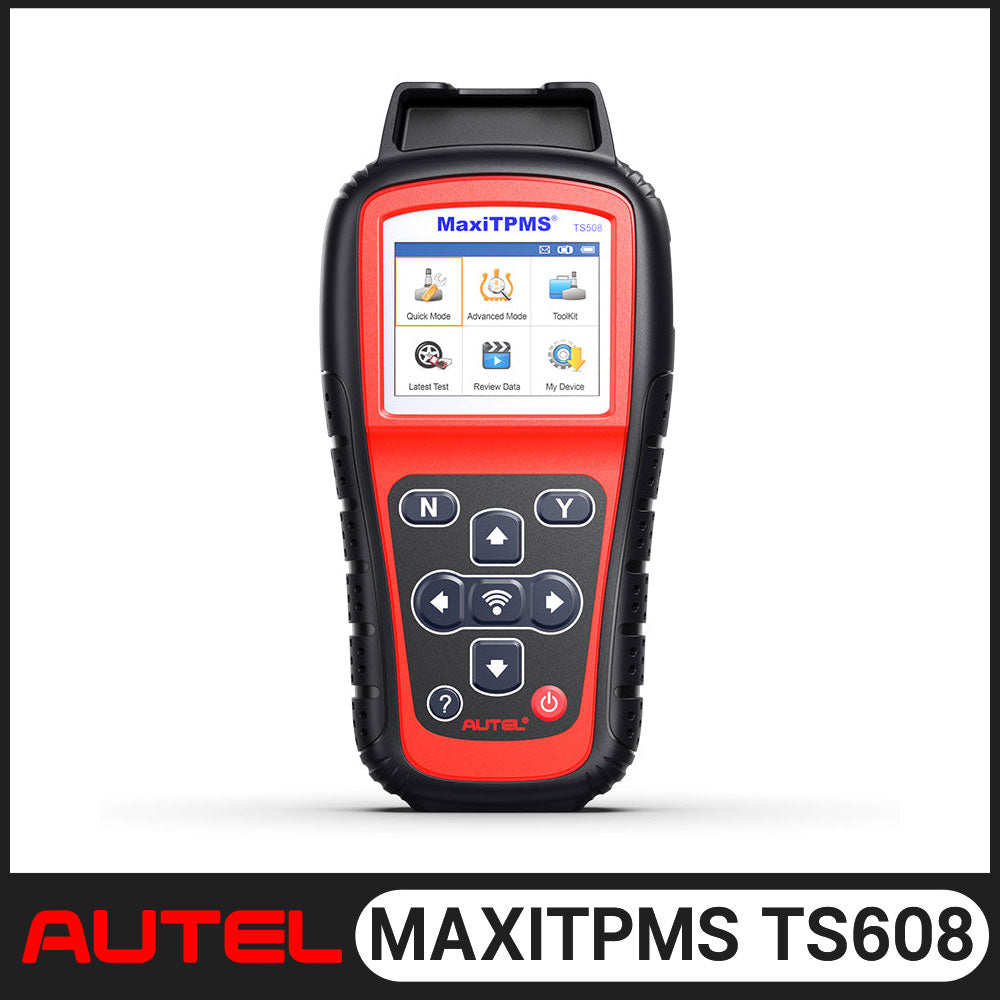

Autel MaxiTPMS TS608 TPMS Diagnostic Tool
- Complete TPMS diagnostics
- advanced service features
- all systems diagnostics
- life free update
- English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian, Romanian, Serbian , Done, Swedish, Czech
Regular price
Save -0%
$488.00
$488.00
Regular price
$488.00
50
Share
Description
Autel TS608 provides you with superior experience in TPMS health check, sensor programming, TPMS relearn, all system diagnostics as well as special service functions. Equipped with a 7-inch touch screen with 1024 * 600P resolution and a VCI mini for wireless communication with the test vehicle, powered by the quad-core Cortex-A9 processor for smooth operation and featured by advanced TPMS & Diagnostic technology, MaxiTPMS TS608 is setting new standards for TPMS service tools.
Autel MaxiTPMS TS608 Features:
Autel TS608 is combined with TS601, Autel MD802 and MaxiCheck Pro three Tools in One Tablet: Complete TPMS diagnostics, advanced service features and all systems diagnostics
Vehicle Coverage: Compatible with Vehicles 1996 and Newer
Mini Bluetooth Vehicle Communications Interface (VCI) for Wireless Connectivity
Autel TS608 is embedded Antenna for TPMS Sensor Activation and MX-Sensor Programming to Replace Damaged Sensors
TS608 comes with One-Year Warranty and One Year Free Update Online
Support: English, Spanish, Portuguese
Autel MaxiTPMS TS608 Specifications:
Recommended Use: Indoor
Operating System: Android™ 4.4.2, KitKat
Processor: Cortex-A9 processor (1.6 GHz)
Memory: 1GB RAM DDR3 & 32GB ROM
Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity: Mini USB 2.0; USB 2.0; Wi-Fi; HDMI Type A; Micro SD card slot (supports up to 32GB);
Sensors: Light sensor for brightness auto adjust
Audio input/output: Input: N/A; Output:Beep;
Power and Battery: 3.7 V/5000 mAh lithium-polymer battery; Charges via 5 VDC power supply;
Tested Battery Life Around 7 hours of continuous use
Battery Charging Input: 5 V/1.5 A
Power Consumption: 600 mA (LCD on with default brightness, Wi-Fi on) 3.7 V
Operating Temp.: -10 to 60°C(14 to 140°F)
Storage Temp.: -20 to 70°C (-4 to 158°F)
Operating Humidit: 5% - 95% non-condensing
Dimensions: (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Net Weight: 885 g (2.31 lb.)
Protocols: ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
Autel MaxiTPMS TS608 Package List:
1 x Autel TS608 Main Unite
1 x MaxiVCI Mini
1 x USB Cable (for test) and Magnet
1 x USB Cable (for charging)
1 x USB External Power Adapter
1 x Hex Key
1 x User Manual
1 x Quick Reference Guide
Autel MaxiTPMS TS608 Features:
Autel TS608 is combined with TS601, Autel MD802 and MaxiCheck Pro three Tools in One Tablet: Complete TPMS diagnostics, advanced service features and all systems diagnostics
Vehicle Coverage: Compatible with Vehicles 1996 and Newer
Mini Bluetooth Vehicle Communications Interface (VCI) for Wireless Connectivity
Autel TS608 is embedded Antenna for TPMS Sensor Activation and MX-Sensor Programming to Replace Damaged Sensors
TS608 comes with One-Year Warranty and One Year Free Update Online
Support: English, Spanish, Portuguese
Autel MaxiTPMS TS608 Specifications:
Recommended Use: Indoor
Operating System: Android™ 4.4.2, KitKat
Processor: Cortex-A9 processor (1.6 GHz)
Memory: 1GB RAM DDR3 & 32GB ROM
Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity: Mini USB 2.0; USB 2.0; Wi-Fi; HDMI Type A; Micro SD card slot (supports up to 32GB);
Sensors: Light sensor for brightness auto adjust
Audio input/output: Input: N/A; Output:Beep;
Power and Battery: 3.7 V/5000 mAh lithium-polymer battery; Charges via 5 VDC power supply;
Tested Battery Life Around 7 hours of continuous use
Battery Charging Input: 5 V/1.5 A
Power Consumption: 600 mA (LCD on with default brightness, Wi-Fi on) 3.7 V
Operating Temp.: -10 to 60°C(14 to 140°F)
Storage Temp.: -20 to 70°C (-4 to 158°F)
Operating Humidit: 5% - 95% non-condensing
Dimensions: (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Net Weight: 885 g (2.31 lb.)
Protocols: ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
Autel MaxiTPMS TS608 Package List:
1 x Autel TS608 Main Unite
1 x MaxiVCI Mini
1 x USB Cable (for test) and Magnet
1 x USB Cable (for charging)
1 x USB External Power Adapter
1 x Hex Key
1 x User Manual
1 x Quick Reference Guide
