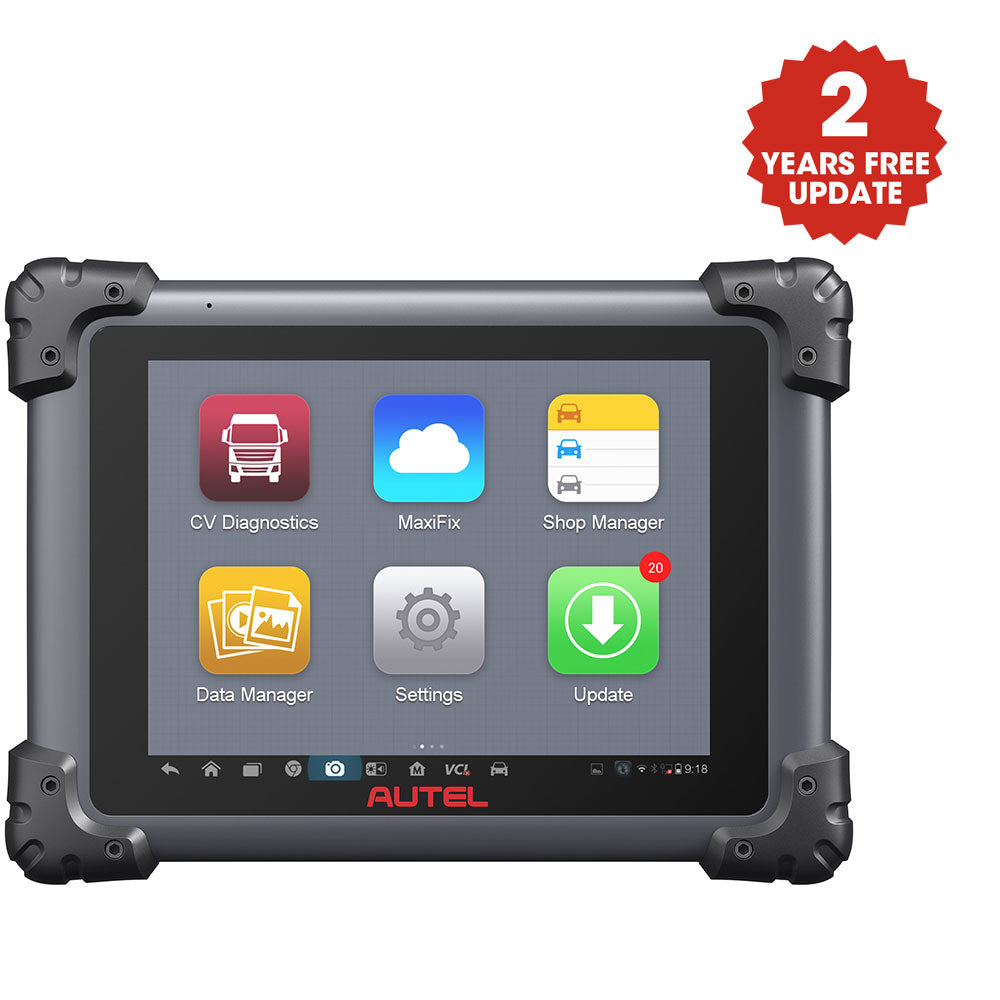

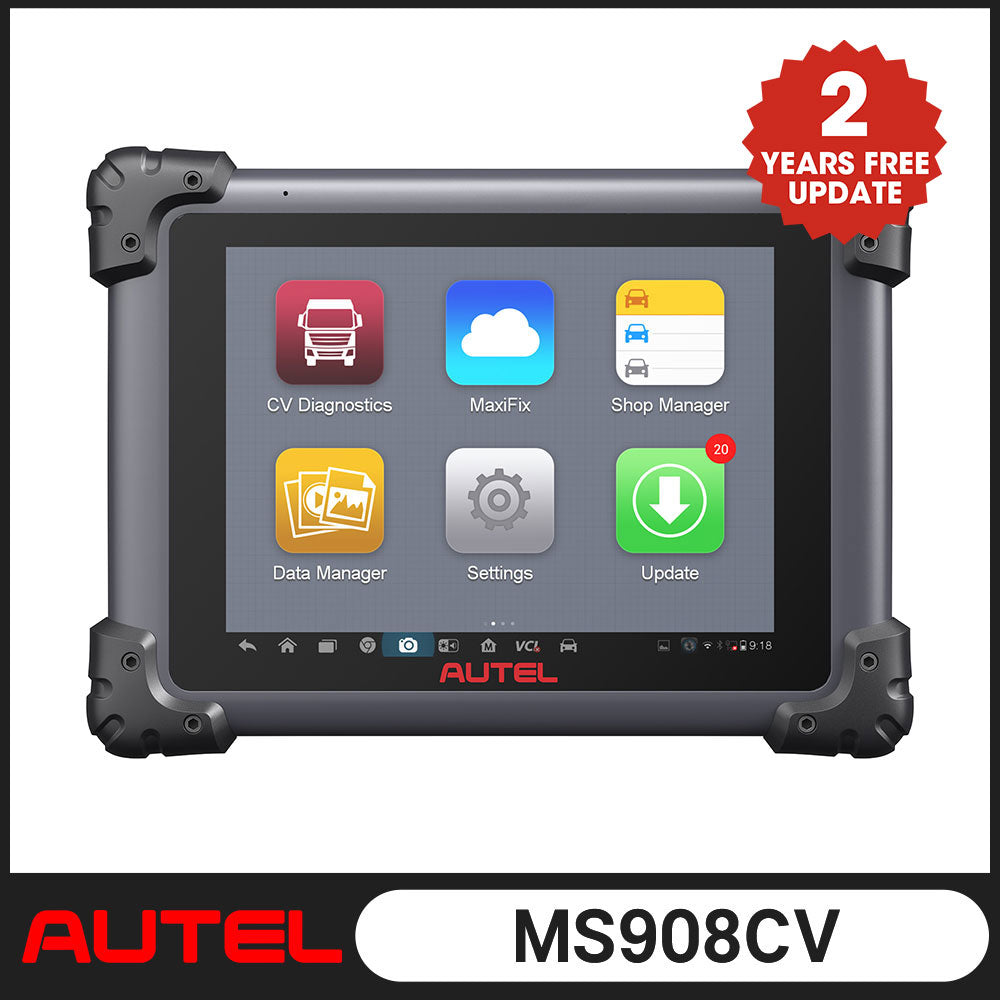

Autel MaxiSys MS908CV Diagnostic Tool

Multiple Truck Concerns Don't Always Mean Multiple Problems When You Have MaxiSys CV

Autel MaxiSYS MS908CV - Incredibly Powerful Scan Tool Designed for Heavy-Duty Vehicles

• Distressed by the few features of heavy truck diagnostic scanners on the market?
• The diagnostic scanners’ vehicle coverage is too little to support the needs of your repair store?
• Need to match with multiple diagnostic tools to complete heavy trucks diagnoses?

Then you may consider our Autel Maxisys MS908CV, a professional diagnostic scanner for commercial vehicles, which is comparable to Maxisys Elite and MS908Spro, snap-on scanners in terms of diagnostic functions.

As a new member of Autel’s MaxiSys family, automotive scanner MaxiSys MS908CV is built on the powerful MaxiSys 908 platform and provides a comprehensive diagnostic solution for virtually all commercial vehicles as well as machines made in America, Europe, and Asia. Offering advanced features and extreme ease-of-use, the scanning tool MaxiSys CV is the ideal solution for independent repair shops, owner-operators, and various sized fleets seeking a single scan tool for all their professional heavy-duty needs.

✔️Extensive vehicle coverage for more than 80 US, Asian and European commercial vehicle makes and machines.

✔️Complete capabilities of all systems diagnoses, 25+ special services, 23+ adaption services.

✔️Advanced ECU coding, J2534 programming.

✔️Bidirectional control to test components.

✔️Displays live data in text, graph, analog, and digital gauge for easy data review and analysis.

✔️Cloud-based Data Manager saves customer and vehicle records, scanner data, and technician notes

✔️Remote backup for convenient demonstration, training, and enormously improve your work efficiency.

✔️Automatic Wi-Fi updates available in new software releases.

✔️Open source Android Operating System for fast boot-up and multitasking.

✔Easy and intuitive navigation makes finding what you need simple and fast.

Multiple Truck Concerns Don't Always Mean Multiple Problems When You Have MaxiSys CV

25+ Service Function & 23+ Adaption Function from 1996 to 2023

Updated from Maxisys 906CV, MS908CV Heavy Duty diagnostic tool comes with 25+ service functions and 23+ adaptions functions, effectively meeting daily maintenance needs.

• Oil Maintenance Light Reset: Re-calculate the optimal oil life change interval.
• Steering Angle Reset: Reset the steering angle to zero to keep the car running straight.
• Injector Coding: Write the new injector code into the car system for the correct cylinder injection quantity.
• Electronic Parking Brake Reset: Help replace and reset the brake pad.
• ABS Bleeding: Help exhaust the air in ABS in an easy way.
• Throttle Matching: Initialize the throttle actuators to the default state.
• Battery Matching: Register the battery after replacement
• D-P-F Regeneration: Help remove the particulate matter to keep the trap stable.
• Tire Pressure Reset: Reset the tire pressure.
• Suspension Level Calibration: Adjust the vehicle body height sensor for level calibration.
• Headlight Matching: Initialize the adaptive headlamp system.
• Gearbox Matching: Help complete the gearbox self-learning to improve gear shifting quality
• Sunroof Initialization: Initialize the sunroof when to be locked off, or closed.

*The heavy-duty scan tool MS908CV performs enhanced diagnoses on more commercial vehicles than other diagnostic tools.

Multiple Truck Concerns Don't Always Mean Multiple Problems When You Have MaxiSys CV

Local-smith Level ECU Coding & J2534 Programming

With the increasing complexity of automotive electronic control systems, ECU programming and ECU coding have become essential skills for nearly every professional mechanic. Therefore, Autel keeps pace with the times and gives the 2023 truck scanner MS908CV high-end ECU coding as well as J2534 programming capabilities, updating the MS908CV to a whole new level. The Heavy Duty Scanner MaxiSys diagnostic tool MS908CV enables you to match modules to components, flash hidden features, and customize OE settings, and it is compatible with light trucks and semi-trucks, for example.

ECU Coding: The ECU coding for heavy machinery is always a nightmare, but time has changed. Once having a heavy-duty scanner MS908CV by your side, you can match the modules with components, flash the hidden functions, and customize the OE settings. And also it has extensive compatibility, such as light-duty truck Ford F-Series, RAM Trucks Series, Scania (Including CCC, CTS, EACS, EHS, EQU, FSS, and SRC), Mercedes-Benz, Iveco, etc.

J2534 ECU Programming: Vehicles become more and more complex and nearly every function is controlled by an Electronic Control Unit (ECU). J2534 standard is a common standard applied for mechanics to do programming jobs for various vehicles without using the OE programming tool. MS908CV comes with a newly updated J2534 ECU programming VCI. It helps you to pass-thru the gateway, access the online data, and flash the ECUs.

Multiple Truck Concerns Don't Always Mean Multiple Problems When You Have MaxiSys CV

Active Test – Offer You In-depth Knowledge Regarding Car Repair

Heavy duty commercial vehicle scanner MS908CV is also bidirectional scan tool that can send and receive information to and from a vehicle’s onboard computer. Those commands will make the module perform specific tests and functions. Ordinary scanners can only receive info from a car’s computer, but those scan tools can’t send orders. From there, you can view the DTCs on the scanner, control the components, and figure out precisely what the issue is.

What You Can Do with MS908CV???

• For example, you can activate and pressurize the fuel pump by merely sending a command from the scanner to the car’s computer. Using an actuator test, a technician can actuate a variable valve timing solenoid and observe a change in the audible note of the engine and/or a change in engine speed. The active test or bi-directional control can be used to see if all the warning lights are still functioning if all solenoids are still working if all the functions of your car are still up to par (e.g. interval of windshield wipers).

Multiple Truck Concerns Don't Always Mean Multiple Problems When You Have MaxiSys CV

OE-Level Systems Diagnoses for 80+ Makes Around the World

Professional auto scan tool Autel CV is one of the greatest versatile diagnostic scanners that you will ever come across. It is compatible with more than 150 US, Asian, and European light trucks, medium trucks, heavy-duty truck makes, and 150+ brands. In addition, it can access all available systems in these vehicles. So, if you’ve got a busy car repair shop that deals with all kinds of vehicles, this will be a good investment for you. Through real-time push and automatic system updates, the covered models will be continuously updated and expanded. Below are the systems for your reference:

• PCM (Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more…
• Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS, and more…
• BCM (Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head-up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition. Electric Windows, Telephone, and more…
• Electrical System: Centralized control system for engine and power transmission, Chassis integrated control and safety system, Intelligent body electronic system, Communication and information/entertainment system
• Supported Protocols: SAE J1939; SAE J1708; Manufacturer customized J1939; Manufacturer customized J1708; KWP; VPW; UDS-CAN; CDL

Multiple Truck Concerns Don't Always Mean Multiple Problems When You Have MaxiSys CV

High-End Configuration Meets Up Your Every Repair Needs

Diagnostic scan tool for all trucks MaxiSYS MS908CV shares almost all features with other high-end Autel products such as Elite; MS908SPRO; MK908P, etc. The diagnostic features like All Systems DTC Scan, high-end features like Service Functions, Bi-Directional Control, ECU Coding & Programming, service functions like Data Manager, MaxiFix Cloud-Based Info System, Shop Manager, Print Feature, diesel mechanic tool 908CV is the same level as other star products. The hardware parameters are also consistent to ensure that users enjoy a high-grade repair experience.

Hardware

• Extraordinarily powerful Cortex-A9 quad-core processor
• 9.7” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology
• Internal reliable and fast 64GB Solid State Drive for better experience
• Built-in 5-megapixel rear camera with autofocus and flashlight
• Unique shop tough ergonomic design features strong rubber protection and housing
• Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
• The VCI connects to the main unit wirelessly with up to 230 meters working range

Other Advanced Software

• Open source Android Operating System for fast boot-up and multitasking
• Complete capabilities for codes, live data, actuation tests, adaptations
• Configures display options, sets triggers, records and playbacks results with one-touch
• Records and playbacks live data to pinpoint troubles of sensors and components
• Prints out recorded data anytime and anywhere with Wi-Fi technology
