Autel MaxiBAS BT608E
- 2022 NEWEST, UPGRADED OF BT508/BT506
- SMART ADAPTIVE CONDUCTANCE
- ALL SYSTEM DIAGNOSIS & AUTO VIN
- ELECTRIC APPLIANCE RESET
- LIFETIME FREE SOFTWARE UPDATES & Wi-Fi PRINTING
- 2022 NEWEST, UPGRADED OF BT508/BT506
- SMART ADAPTIVE CONDUCTANCE
- ALL SYSTEM DIAGNOSIS & AUTO VIN
- ELECTRIC APPLIANCE RESET
- LIFETIME FREE SOFTWARE UPDATES & Wi-Fi PRINTING
Share

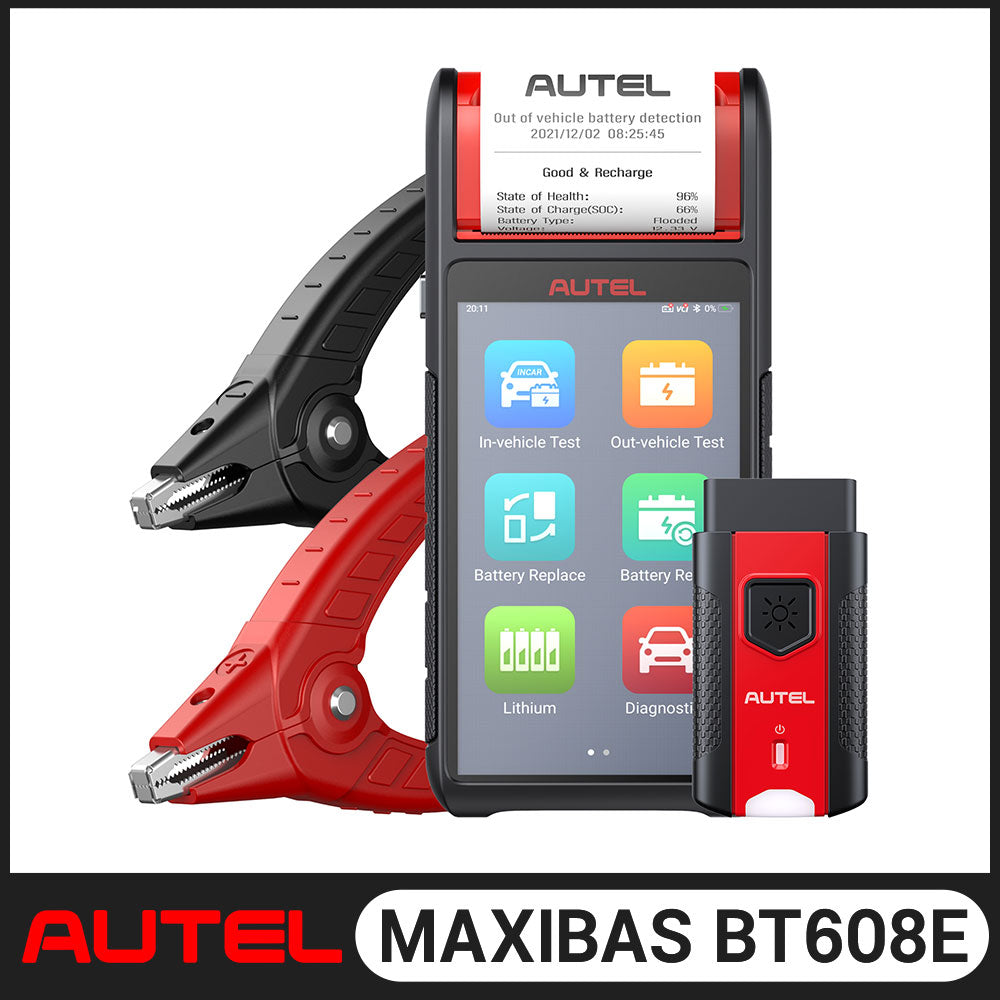

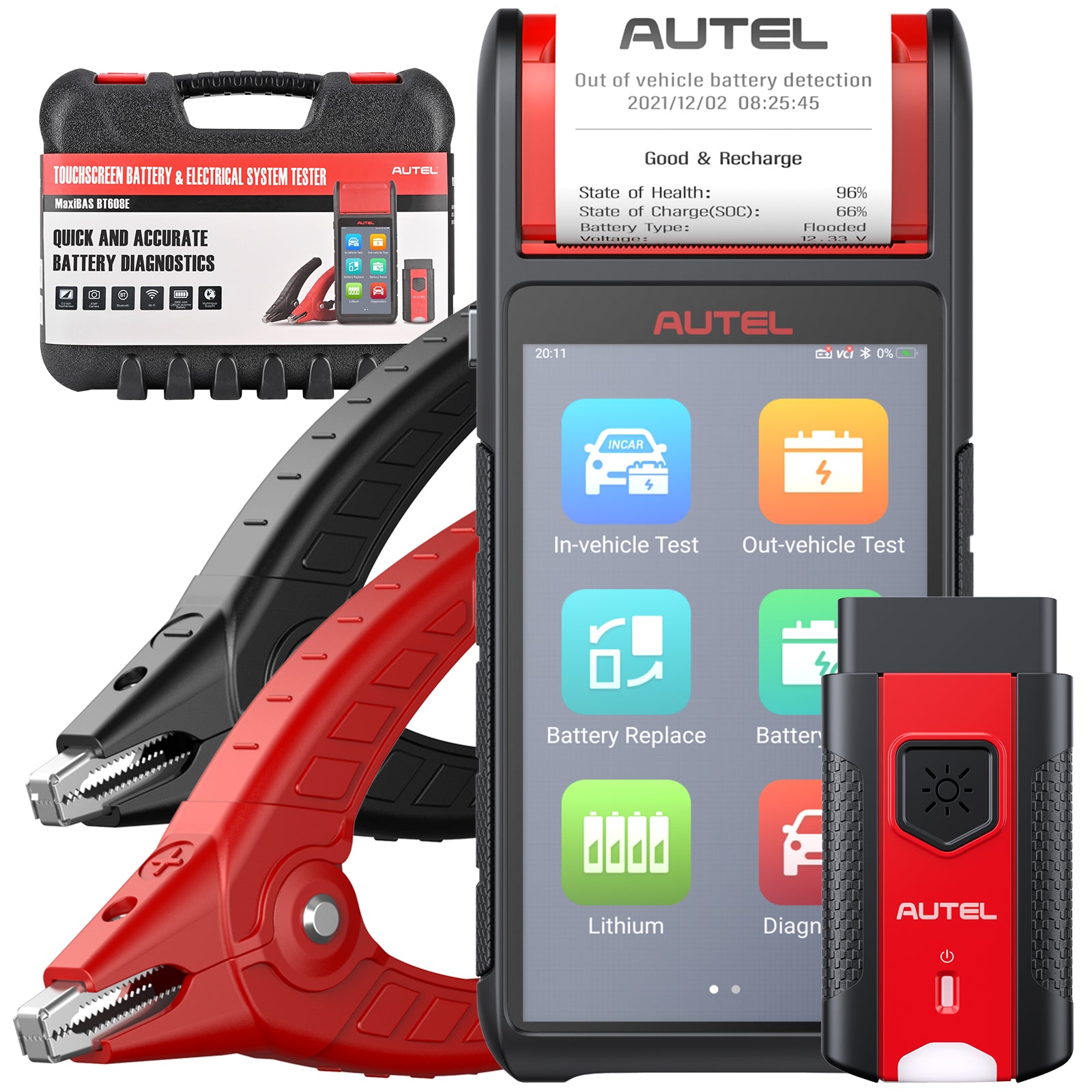

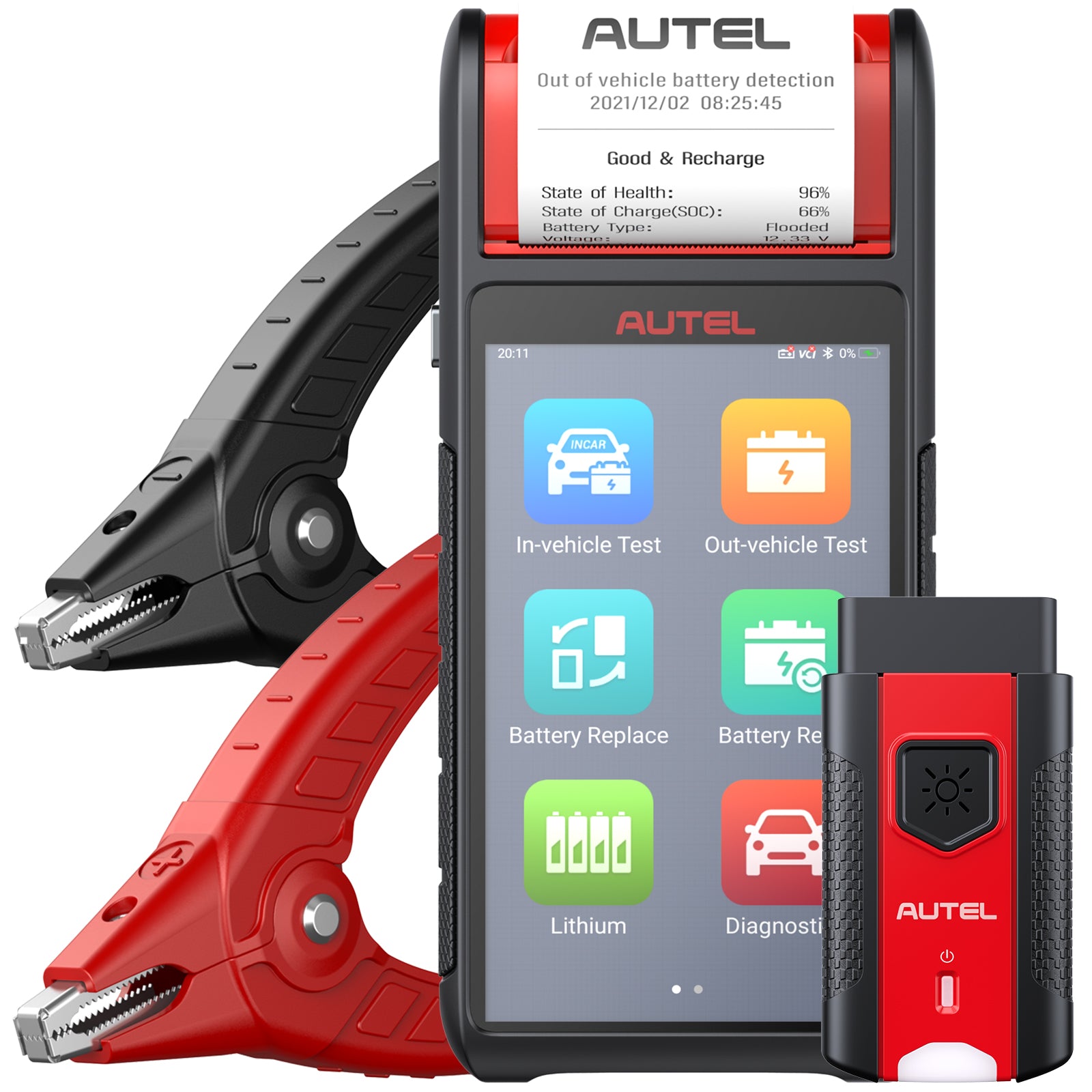

Autel MaxiBAS BT608E Battery Tester Electrical System Analyzer With Printer All System Diagnostics Tools Upgraded BT508/BT506
The BT608 is a touchscreen Battery & Electrical System analyzer that applies Adaptive Conductance, an advanced battery analysis method that produces a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT608 can display a quick health status of the existing battery, register a new battery and perform advanced battery and electrical system diagnostics. The BT608’s VINscan function enables quick identification of the vehicle and battery specifications. Read/Clear codes on all available vehicles systems. Print or share customized reports via Wi-Fi or print test reports via the built-in thermal printer.
The reasons to buy BT608E
• Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
• Test 6- and 12-volt batteries: 100 - 3000 CCA
• Test 12- and 24-volt cranking/charging systems
• Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
• Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
• One-touch Battery registration
• Quick display of battery specifications through battery barcode scan, Auto and manual VIN entry
• Illustration instruction guides for battery positioning and testing
• Print test reports via built-in thermal printer
• Read and erase codes of all available systems
Description
Operating System:Android 9.0
Screen Display:5.5'' LCD touch screen with 720*1280 resolution
Storage:2 GB
Connectivity:Wi-Fi (802.11 a/b/g/n/ac)
USB 2.0 , Type C
BT5.0+EDR
Camera:8 Megapixel
Input Voltage:5 V DC
Working Current:< 450 mA at 7.7 V DC
Internal Battery:7.7 V, 3000 mAh
CCA Range:100 to 3000 A
Voltage Range:1.5 to 36 V
Working Temperature:0° to 50° C (32° to 122° F )
Storage Temperature:-10° to 60° C (14° to 140° F )
Dimension (L x W x H):204 mm (8.03'') x 90 mm (3.54'') x 32 mm (1.25'')
Weight:510 g (1.12 lb.)
