- Upgrade of TS508K/TS508/TS501/TS408
- TPMS Relearn, Activate, Diagnostics
- Activate Sensors & Diagnose TPMS
Share

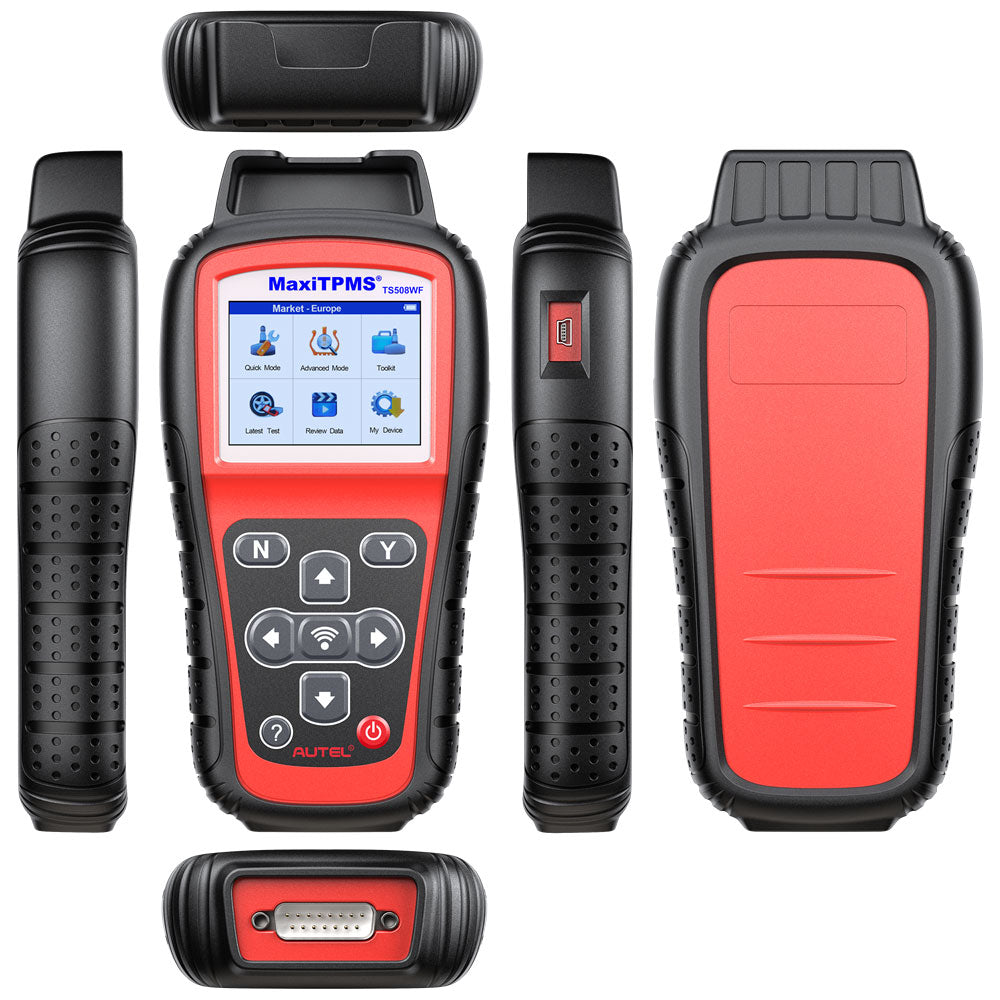

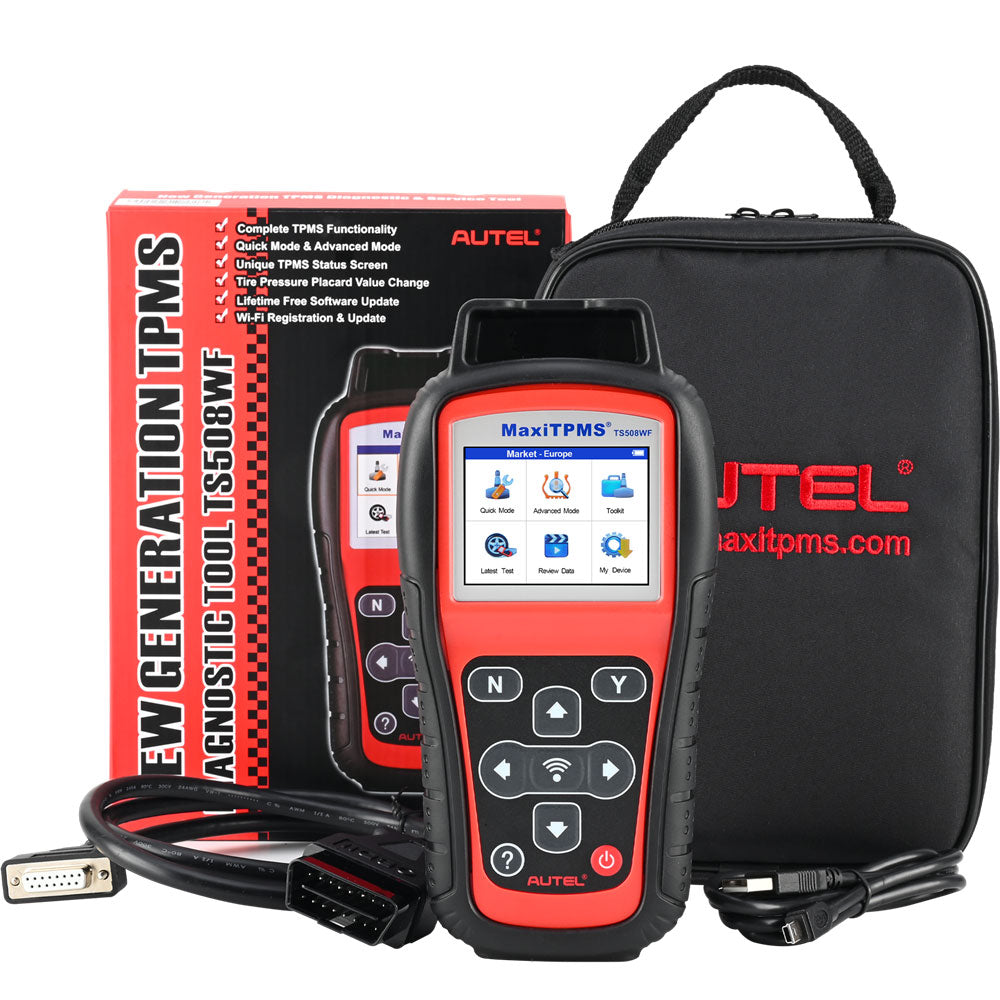

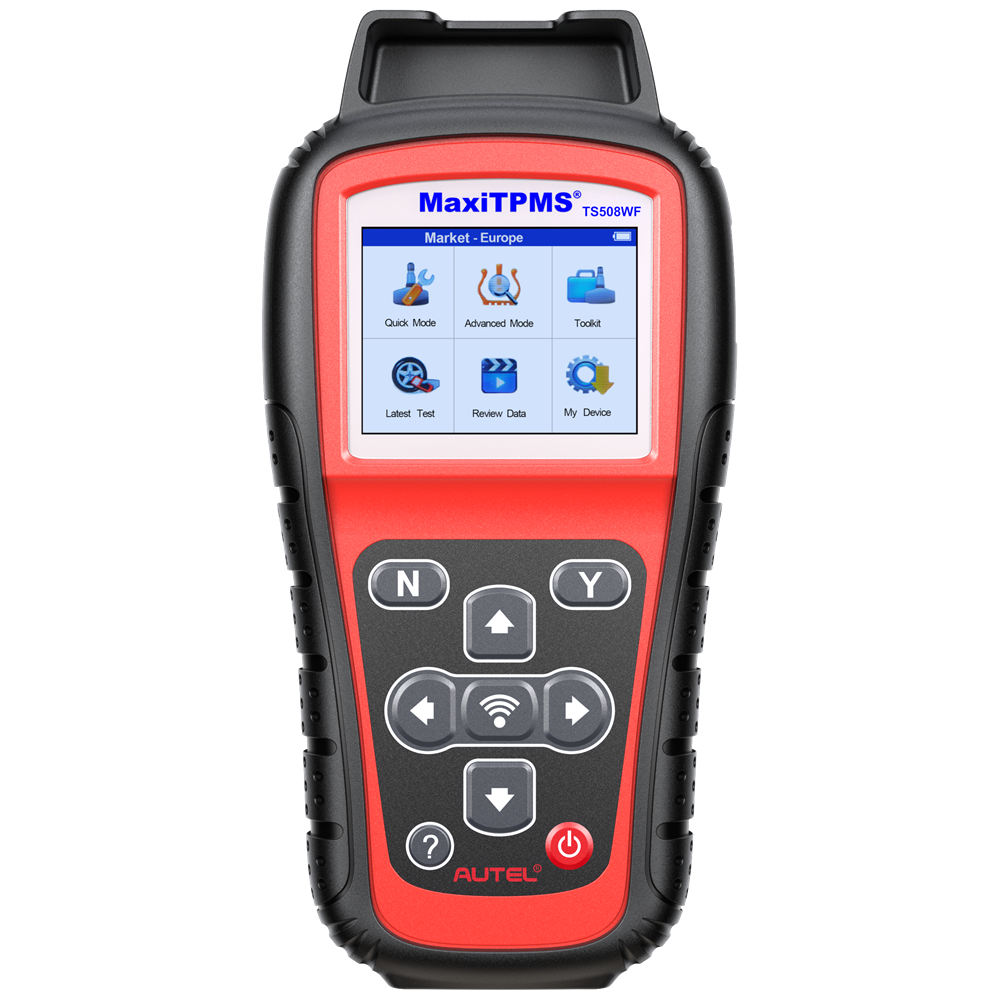

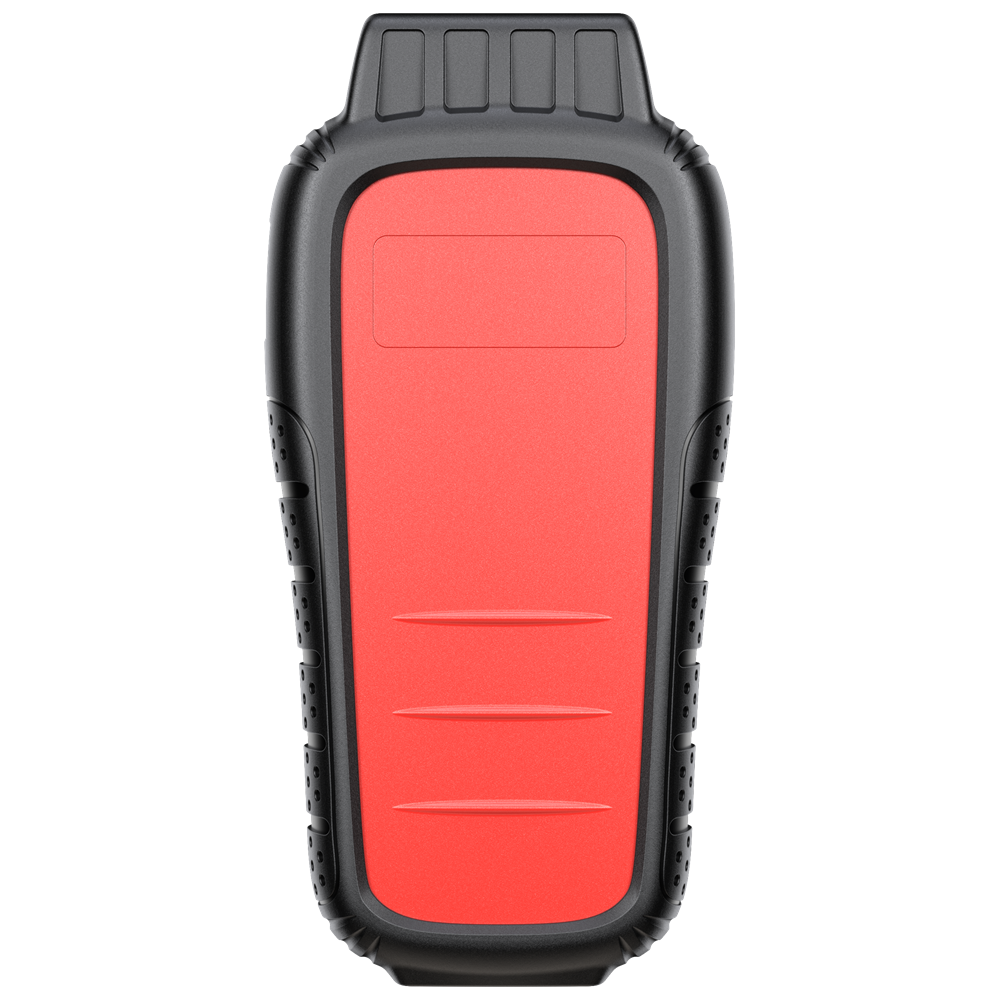

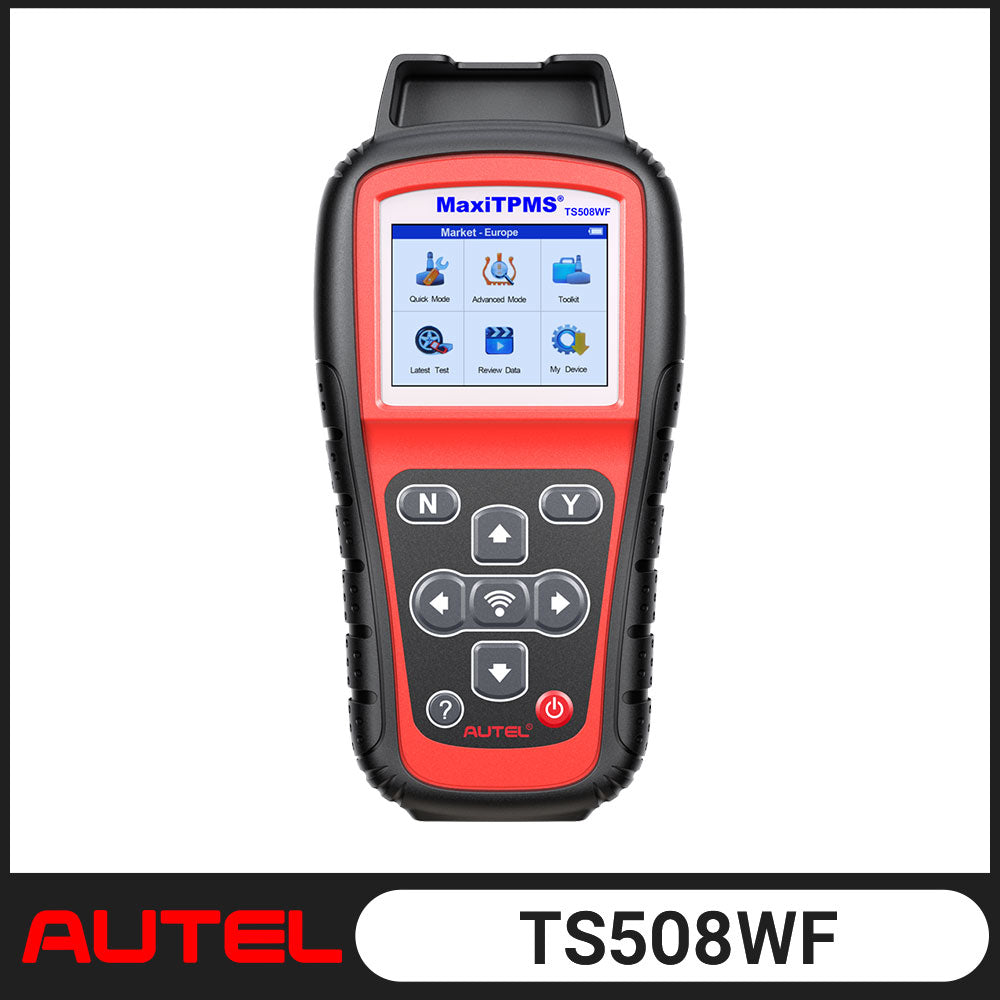

The TS508WF and TS508 feature Quick and Advance modes of TPMS service and a TPMS status screen. It can read/activate/relearn all known sensors, has two methods of MX-Sensor programming, and performs placard value resets on supported vehicles. The TS508WF and TS508 display on-tool MX-Sensor relearn procedures including OBDII and can do key fob signal tests. It includes an OBDII cable, a 1-year tool warranty, and free lifetime software updates are available with purchase.
Autel 2023 Newest TS508WF -- Upgraded WiFi Ver. of TS508
Autel TS508WF TPMS scanner, Autel's First Non-tablet Tool providing Lifetime WiFi Updates incorporates all features of TS508/ TS501/ TS408/ TS601, meets all your needs with all-around powerful functions including TPMS relearn, programming, activation, and TPMS-related OBD2 diagnostics, etc.
The TS508WF provides two methods for updating: Update by Wi-Fi and Update by USB. The two methods bring customers faster and more convenient updating experience, disencumbering the worries that update must be done with computer. From now on, you only need to be in a Wi-Fi environment.
With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work.
Key Fob Testing
Autel TS508WF TPMS Programming Tool is about to test signal strength of remote key fob, it will show the signal strength in percentage number on the screen so that you can know the signal strength directly.
Exclusive TPMS Status Screen
- Read ECU sensor ID;
- Check sensor ID and ECU ID matching condition;
- Read DTCs from ECU and erase DTCs;
- View DTCs detail description;
| Display | TFT color display (320 x 240 dpi) |
| Power | 3.7 V Li-polymer battery; 3200 mAh |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Dimensions (LxWxH) | 215 mm (8.46″) / 105 mm (4.13″) / 37 mm (1.46″) |
| Weight | 0.39 kg (0.86 lb.) |
